Lecture 7

Welcome!

  • In previous weeks, we introduced you to Python, a high-level programming language that utilized the same building blocks we learned in C. However, we introduced this new language not for the purpose of learning “just another language.” Instead, we do so because some tools are better for some jobs and not so great for others!
  • This week, we will be continuing more syntax related to Python.
  • Further, we will be integrating this knowledge with data.
  • Finally, we will be discussing SQL or Structured Query Language.
  • Overall, one of the goals of this course is to learn to program generally – not simply how to program in the languages described in this course.

Flat-File Database

  • As you have likely seen before, data can often be described in patterns of columns and rows.
  • Spreadsheets like those created in Microsoft Excel and Google Sheets can be outputted to a csv or comma-separated values file.
  • If you look at a csv file, you’ll notice that the file is flat in that all of our data is stored in a single table represented by a text file. We call this form of data a flat-file database.
  • Python comes with native support for csv files.
  • In your terminal window, type code favorites.py and write code as follows:

    # Prints all favorites in CSV using csv.reader

    import csv

    # Open CSV file
    with open("favorites.csv", "r") as file:

        # Create reader
        reader = csv.reader(file)

        # Skip header row
        next(reader)

        # Iterate over CSV file, printing each favorite
        for row in reader:
            print(row[1])


    Notice that the csv library is imported. Further, we created a reader that will hold the result of csv.reader(file). The csv.reader function reads each row from the file, and in our code we store the results in reader. print(row[1]), therefore, will print the language from the favorites.csv file.

  • You can improve your code as follows:

    # Stores favorite in a variable

    import csv

    # Open CSV file
    with open("favorites.csv", "r") as file:

        # Create reader
        reader = csv.reader(file)

        # Skip header row
        next(reader)

        # Iterate over CSV file, printing each favorite
        for row in reader:
            favorite = row[1]
            print(favorite)


    Notice that favorite is stored and then printed. Also notice that we use the next function to skip to the next line of our reader.

  • One of the disadvantages of the above approach is that we are trusting that row[1] is always the favorite. However, what would happen if the columns have been moved around?
  • We can fix this potential issue. Python also allows you to index by the keys of a list. Modify your code as follows:

    # Prints all favorites in CSV using csv.DictReader

    import csv

    # Open CSV file
    with open("favorites.csv", "r") as file:

        # Create DictReader
        reader = csv.DictReader(file)

        # Iterate over CSV file, printing each favorite
        for row in reader:
            favorite = row["language"]
            print(favorite)


    Notice that this example directly utilizes the language key in the print statement.

  • This could be further simplified to:

    # Prints all favorites in CSV using csv.DictReader

    import csv

    # Open CSV file
    with open("favorites.csv", "r") as file:

        # Create DictReader
        reader = csv.DictReader(file)

        # Iterate over CSV file, printing each favorite
        for row in reader:
            print(row["language"])

  • To count the number of favorite languages expressed in the csv file, we can do the following:

    # Counts favorites using variables

    import csv

    # Open CSV file
    with open("favorites.csv", "r") as file:

        # Create DictReader
        reader = csv.DictReader(file)

        # Counts
        scratch, c, python = 0, 0, 0

        # Iterate over CSV file, counting favorites
        for row in reader:
            favorite = row["language"]
            if favorite == "Scratch":
                scratch += 1
            elif favorite == "C":
                c += 1
            elif favorite == "Python":
                python += 1

    # Print counts
    print(f"Scratch: {scratch}")
    print(f"C: {c}")
    print(f"Python: {python}")


    Notice that each language is counted using if statements. Further notice the double equal == signs in those if statements.

  • Python allows us to use a dictionary to count the counts of each language. Consider the following improvement upon our code:

    # Counts favorites using dictionary

    import csv

    # Open CSV file
    with open("favorites.csv", "r") as file:

        # Create DictReader
        reader = csv.DictReader(file)

        # Counts
        counts = {}

        # Iterate over CSV file, counting favorites
        for row in reader:
            favorite = row["language"]
            if favorite in counts:
                counts[favorite] += 1
            else:
                counts[favorite] = 1

    # Print counts
    for favorite in counts:
        print(f"{favorite}: {counts[favorite]}")


    Notice that the value in counts with the key favorite is incremented when it exists already. If it does not exist, we define counts[favorite] and set it to 1. Further, the formatted string has been improved to present the counts[favorite].

  • Python also allows sorting counts. Improve your code as follows:

    # Sorts favorites by key

    import csv

    # Open CSV file
    with open("favorites.csv", "r") as file:

        # Create DictReader
        reader = csv.DictReader(file)

        # Counts
        counts = {}

        # Iterate over CSV file, counting favorites
        for row in reader:
            favorite = row["language"]
            if favorite in counts:
                counts[favorite] += 1
            else:
                counts[favorite] = 1

    # Print counts
    for favorite in sorted(counts):
        print(f"{favorite}: {counts[favorite]}")


    Notice the sorted(counts) at the bottom of the code.

  • If you look at the parameters for the sorted function in the Python documentation, you will find it has many built-in parameters. You can leverage some of these built-in parameters as follows:

    # Sorts favorites by value using .get

    import csv

    # Open CSV file
    with open("favorites.csv", "r") as file:

        # Create DictReader
        reader = csv.DictReader(file)

        # Counts
        counts = {}

        # Iterate over CSV file, counting favorites
        for row in reader:
            favorite = row["language"]
            if favorite in counts:
                counts[favorite] += 1
            else:
                counts[favorite] = 1

    # Print counts
    for favorite in sorted(counts, key=counts.get, reverse=True):
        print(f"{favorite}: {counts[favorite]}")


    Notice the arguments passed to sorted. The key argument allows you to tell Python the method you wish to use to sort items. In this case counts.get is used to sort by the values. reverse=True tells sorted to sort from largest to smallest.

  • Python has numerous libraries that we can utilize in our code. One of these libraries is collections, from which we can import Counter. Counter will allow you to access the counts of each language without the headaches of all the if statements seen in our previous code. You can implement as follows:

    # Sorts favorites by value using .get

    import csv

    from collections import Counter

    # Open CSV file
    with open("favorites.csv", "r") as file:

        # Create DictReader
        reader = csv.DictReader(file)

        # Counts
        counts = Counter()

        # Iterate over CSV file, counting favorites
        for row in reader:
            favorite = row["language"]
            counts[favorite] += 1

    # Print counts
    for favorite, count in counts.most_common():
        print(f"{favorite}: {count}")


    Notice how counts = Counter() enables the use of this imported Counter class from collections.

  • We can change the column we are examining, focusing on our favorite problem instead:

    # Favorite problem instead of favorite language

    import csv

    from collections import Counter

    # Open CSV file
    with open("favorites.csv", "r") as file:

        # Create DictReader
        reader = csv.DictReader(file)

        # Counts
        counts = Counter()

        # Iterate over CSV file, counting favorites
        for row in reader:
            favorite = row["problem"]
            counts[favorite] += 1

    # Print counts
    for favorite, count in counts.most_common():
        print(f"{favorite}: {count}")


    Notice that problem replaced language.

  • We can also get the count of the popularity of a specific problem in the course:

    # Gets a specific count

    import csv

    from collections import Counter

    # Open CSV file
    with open("favorites.csv", "r") as file:

        # Create DictReader
        reader = csv.DictReader(file)

        # Counts
        counts = Counter()

        # Iterate over CSV file, counting favorites
        for row in reader:
            favorite = row["problem"]
            counts[favorite] += 1

    # Print count
    favorite = input("Favorite: ")
    print(f"{favorite}: {counts[favorite]}")


    Notice how compact our code is compared to our experience in C.

Relational Databases

  • Google, Twitter, and Meta all use relational databases to store their information at scale.
  • Relational databases store data in rows and columns in structures called tables.
  • SQL allows for four types of commands:

      Create
      Read
      Update
      Delete

  • These four operations are affectionately called CRUD.
  • We can create a SQL database at the terminal by typing sqlite3 favorites.db. Upon being prompted, we will agree that we want to create favorites.db by pressing y.
  • You will notice a different prompt as we are now inside a program called sqlite3.
  • We can put sqlite3 into csv mode by typing .mode csv. Then, we can import our data from our csv file by typing .import favorites.csv favorites. It seems that nothing has happened!
  • We can type .schema to see the structure of the database.
  • You can read items from a table using the syntax SELECT columns FROM table.
  • For example, you can type SELECT * FROM favorites; which will iterate every row in favorites.
  • You can get a subset of the data using the command SELECT language FROM favorites;.
  • SQL supports many commands to access data, including:

      AVG
      COUNT
      DISTINCT
      LOWER
      MAX
      MIN
      UPPER

  • For example, you can type SELECT COUNT(language) FROM favorites;. Further, you can type SELECT DISTINCT(language) FROM favorites; to get a list of the individual languages within the database. You could even type SELECT COUNT(DISTINCT(language)) FROM favorites; to get a count of those.
  • SQL offers additional commands we can utilize in our queries:

      WHERE       -- adding a Boolean expression to filter our data
      LIKE        -- filtering responses more loosely
      ORDER BY    -- ordering responses
      LIMIT       -- limiting the number of responses
      GROUP BY    -- grouping responses together


    Notice that we use -- to write a comment in SQL.

  • For example, we can execute SELECT COUNT(*) FROM favorites WHERE language = 'C';. A count is presented.
  • Further, we could type SELECT COUNT(*) FROM favorites WHERE language = 'C' AND problem = 'Hello, World;. Notice how the AND is utilized to narrow our results.
  • Similarly, we could execute SELECT language, COUNT(*) FROM favorites GROUP BY language;. This would offer a temporary table that would show the language and count.
  • We could improve this by typing SELECT language, COUNT(*) FROM favorites GROUP BY language ORDER BY COUNT(*);. This will order the resulting table by the count.
  • We can also INSERT into a SQL database utilizing the form INSERT INTO table (column...) VALUES(value, ...);.
  • We can execute INSERT INTO favorites (language, problem) VALUES ('SQL', 'Fiftyville');.
  • DELETE allows you to delete parts of your data. For example, you could DELETE FROM favorites WHERE Timestamp IS NULL;.
  • We can also utilize the UPDATE command to update your data.
  • For example, you can execute UPDATE favorites SET language = 'SQL', problem = 'Fiftyville';. This will result in overwriting all previous statements where C was the favorite programming language.
  • Notice that these queries have immense power. Accordingly, in the real-world setting, you should consider who has permissions to execute certain commands.

Shows

  • We can imagine a database that we might want to create to catalog various TV shows. We could create a spreadsheet with columns like title, star, star, star, star, and more stars. A problem with this approach is this approach has a lot of wasted space. Some shows may have one star. Others may have dozens.
  • We could separate our database into multiple sheets. We could have a shows sheet and a people sheet. On the people sheet, each person could have a unique id. On the shows sheet, each show could have a unique id too. On a third sheet called stars we could relate how each show has people for each show by having a show_id and person_id. While this is an improvement, this is not an ideal database.

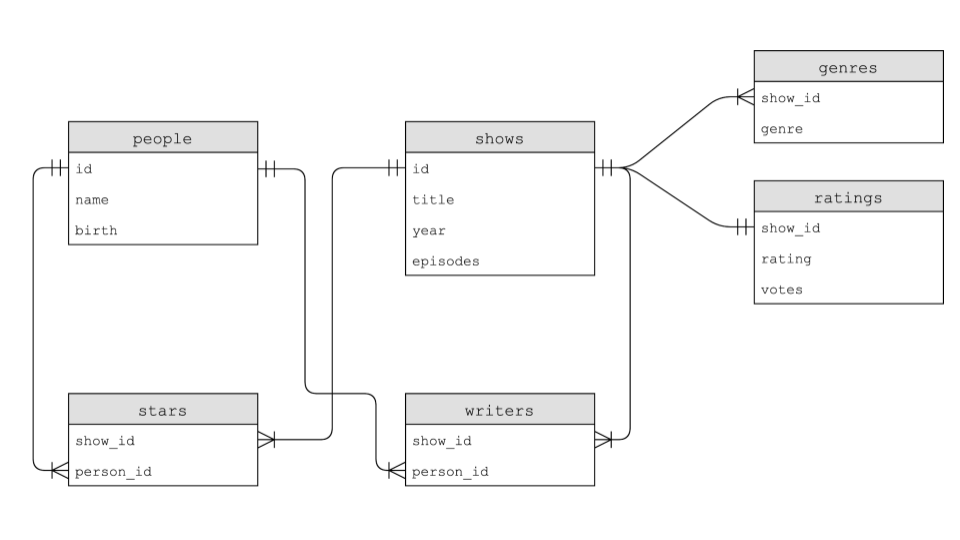

  • IMDb offers a database of people, shows, writers, stars, genres, and ratings. Each of these tables is related to one another as follows:

    six boxes that represent various sql tables arrows are drawn to each showing their many relationships with one another

  • After downloading shows.db, you can execute sqlite3 shows.db in your terminal window.

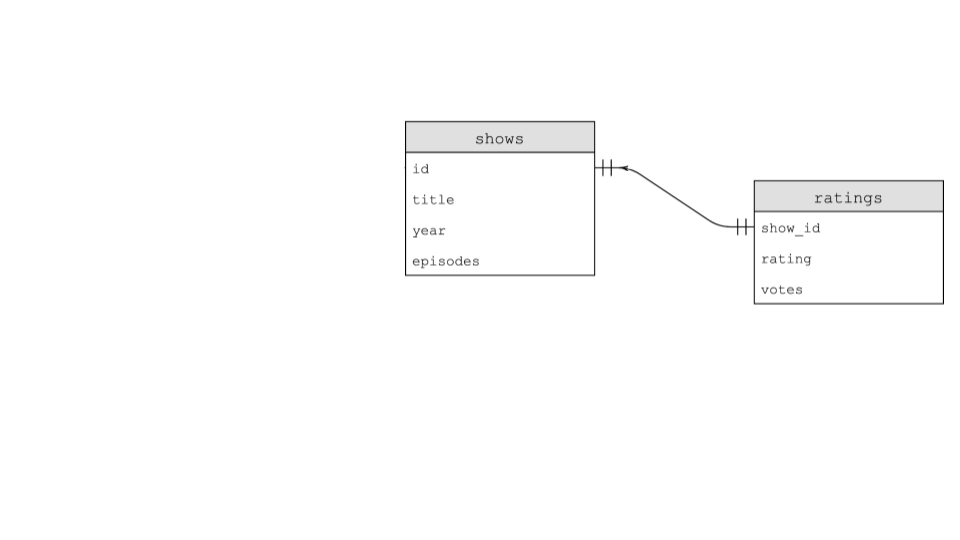

  • Let’s zero in on the relationship between two tables within the database called shows and ratings. The relationship between these two tables can be illustrated as follows:

    two boxes one called shows and the other called ratings

  • To illustrate the relationship between these tables, we could execute the following command: SELECT * FROM ratings LIMIT 10;. Examining the output, we could execute SELECT * FROM shows LIMIT 10;.
  • To understand the database, upon executing .schema you will find not only each of the tables but the individual fields inside each of these fields.
  • As you can see, shows has an id field. The genres table has a show_id field which has data that is common between it and the shows table.
  • Further, show_id exists in all of the tables. In the shows table, it is simply called id. This common field between all the fields is called a key. Primary keys are used to identify a unique record in a table. Foreign keys are used to build relationships between tables by pointing to the primary key in another table.
  • By storing data in a relational database, as above, data can be more efficiently stored.
  • In sqlite, we have five datatypes, including:

      BLOB       -- binary large objects that are groups of ones and zeros
      INTEGER    -- an integer
      NUMERIC    -- for numbers that are formatted specially like dates
      REAL       -- like a float
      TEXT       -- for strings and the like

  • Additionally, columns can be set to add special constraints:

      NOT NULL
      UNIQUE

  • We could execute SELECT * FROM stars LIMIT 10;. show_id is a foreign key in this final query because show_id corresponds to the unique id field in shows. person_id corresponds to the unique id field in the people column.
  • We can further play with this data to understand these relationships. Execute SELECT * FROM ratings;. There are a lot of ratings!
  • We can further limit this data down by executing SELECT show_id FROM ratings WHERE rating >= 6.0 LIMIT 10;. From this query, you can see that there are 10 shows presented. However, we don’t know what show each show_id represents.
  • You can discover what shows these are by executing SELECT * FROM shows WHERE id = 626124;
  • We can further our query to be more efficient by executing:

    SELECT title
    FROM shows
    WHERE id IN (
        SELECT show_id
        FROM ratings
        WHERE rating >= 6.0
        LIMIT 10
    )


    Notice that this query nests together two queries. An inner query is used by an outer query.

JOINs

  • We are pulling data from shows and ratings.
  • How could we combine tables temporarily? Tables could be joined together using the JOIN command.
  • Execute the following command:

    SELECT * FROM shows
      JOIN ratings on shows.id = ratings.show_id
      WHERE rating >= 6.0
      LIMIT 10;


    Notice this results in a wider table than we have previously seen.

  • Where the previous queries have illustrated the one-to-one relationship between these keys, let’s examine some one-to-many relationships. Focusing on the genres table, execute the following:

    SELECT * FROM genres
    LIMIT 10;


    Notice how this provides us a sense of the raw data. You might notice that one shows have three values. This is a one-to-many relationship.

  • We can learn more about the genres table by typing .scheme genres.
  • Execute the following command to learn more about the various comedies in the database:

    SELECT title FROM shows
    WHERE id IN (
      SELECT show_id FROM genres
      WHERE genre = 'Comedy'
      LIMIT 10
    );


    Notice how this produces a list of comedies, including Catweazle.

  • To learn more about Catweazle, by joining various tables through a join:

    SELECT * FROM shows
    JOIN genres
    ON shows.id = genres.show_id
    WHERE id = 63881;


    Notice that this results in a temporary table. It is fine to have duplicate table.

  • A final relationship is a many-to-many relationship.
  • We can learn more about the show The Office by executing the following command:

    SELECT person_id FROM stars
    WHERE show_id = (
      SELECT id FROM shows
      WHERE title = 'The Office' AND year = 2005
    );


    Notice that this results in a table that includes the person_ids of various stars.

  • I could learn more about this group of actors by executing the following:

    SELECT name FROM people
    WHERE id IN (
        SELECT person_id FROM stars
        WHERE show_id = (
          SELECT id FROM shows
          WHERE title = 'The Office' AND year = 2005
        )
    );


    This results in a top-billed stars.

  • We can further understand this data by executing:

    SELECT title from shows
    WHERE id IN (
      SELECT show_id FROM stars
      WHERE person_id = (
        SELECT id FROM people
        WHERE name = 'Steve Carell'
      )
    );


    This results in a list of titles of shows wherein Steve Carell stared.

  • The wildcard % operator can be used to find all people whose names start with Steve C one could employ the syntax SELECT * FROM people WHERE name LIKE 'Steve C%';.

Indexes

  • While relational databases have the ability to be more fast and more robust than utilizing a CSV file, data can be optimized within a table using indexes.
  • Indexes can be utilized to speed up our queries.
  • We can track the speed of our queries by executing .timer on in sqlite3.
  • To understand how indexes can speed up our queries, run the following: SELECT * FROM shows WHERE title = 'The Office'; Notice the time that displays after the query executes.
  • Then, we can create an index with the syntax CREATE INDEX title_index on shows (title);. This tells sqlite3 to create an index and perform some special under-the-hood optimization relating to this column title.

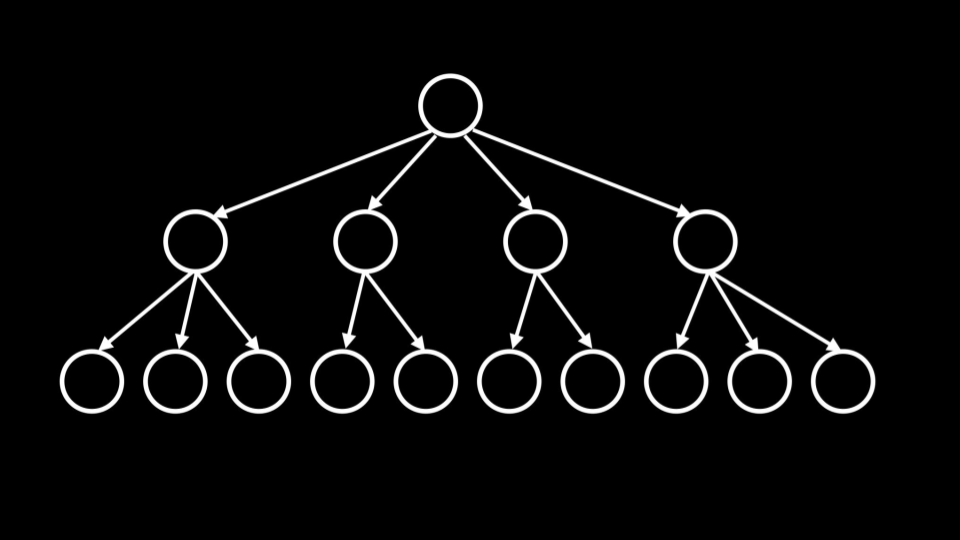

  • This will create a data structure called a B Tree, a data structure that looks similar to a binary tree. However, unlike a binary tree, there can be more than two child notes.

    one node at the top from which come four children and below that there are three children coming from one of the nodes and two from another two from another and three from another

  • Running the query SELECT * FROM shows WHERE title = 'The Office';, you will notice that the query runs much more quickly!
  • Unfortunately, indexing all columns would result in utilizing more storage space. Therefore, there is a tradeoff for enhanced speed.

Using SQL in Python

  • To assist in working with SQL in this course, the CS50 Library can be utilized as follows in your code:

    from cs50 import SQL

  • Similar to previous uses of the CS50 Library, this library will assist with the complicated steps of utilizing SQL within your Python code.
  • You can read more about the CS50 Library’s SQL functionality in the documentation.
  • Recall where we last left off in favorites.py. Your code should appear as follows:

    # Gets a specific count

    import csv

    from collections import Counter

    # Open CSV file
    with open("favorites.csv", "r") as file:

        # Create DictReader
        reader = csv.DictReader(file)

        # Counts
        counts = Counter()

        # Iterate over CSV file, counting favorites
        for row in reader:
            favorite = row["problem"]
            counts[favorite] += 1

    # Print count
    favorite = input("Favorite: ")
    print(f"{favorite}: {counts[favorite]}")


    Notice how this code is exactly as we left it prior.

  • Modify your code as follows:

    # Searches database popularity of a problem

    import csv

    from cs50 import SQL

    # Open database
    db = SQL("sqlite:///favorites.db")

    # Prompt user for favorite
    favorite = input("Favorite: ")

    # Search for title
    rows = db.execute("SELECT COUNT(*) AS n FROM favorites WHERE problem LIKE ?", favorite)

    # Get first (and only) row
    row = rows[0]

    # Print popularity
    print(row["n"])


    Notice that db = SQL("sqlite:///favorites.db") provide Python the location of the database file. Then, the line that begins with rows executes SQL commands utilizing db.execute. Indeed, this command passes the syntax within the quotation marks to the db.execute function. We can issue any SQL command using this syntax. Further, notice that rows is returned as a list of dictionaries. In this case, there is only one result, one row, returned to the rows list as a dictionary.

Race Conditions

  • Utilization of SQL can sometimes result in some problems.
  • You can imagine a case where multiple users could be accessing the same database and executing commands at the same time.
  • This could result in glitches where code is interrupted by other people’s actions. This could result in a loss of data.
  • Built-in SQL features such as BEGIN TRANSACTION, COMMIT, and ROLLBACK help avoid some of these race condition problems.

SQL Injection Attacks

  • Now, still considering the code above, you might be wondering what the ? question marks do above. One of the problems that can arise in real-world applications of SQL is what is called an injection attack. An injection attack is where a malicious actor could input malicious SQL code.

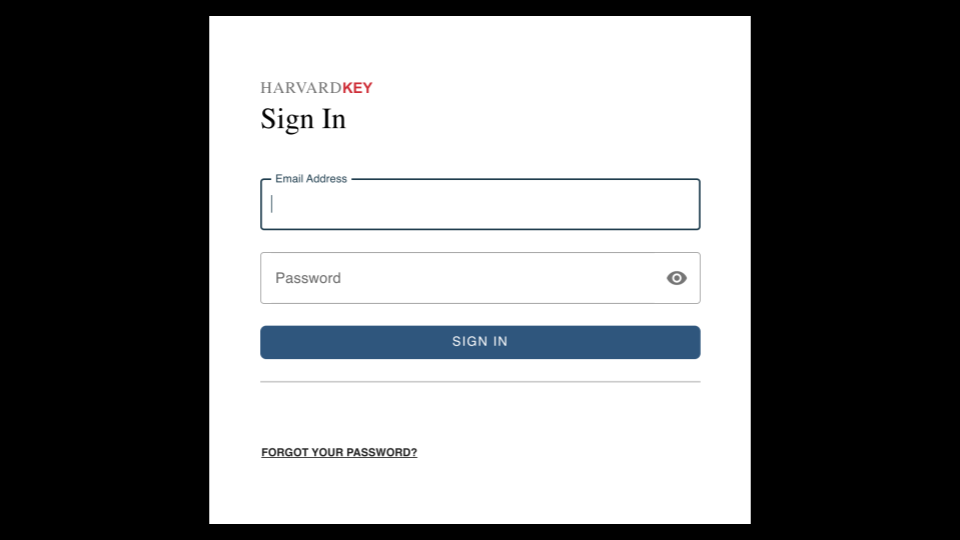

  • For example, consider a login screen as follows:

    harvard key login screen with username and password fields

  • Without the proper protections in our own code, a bad actor could run malicious code. Consider the following:

    rows = db.execute("SELECT COUNT(*) FROM users WHERE username = ? AND password = ?", username, password)


    Notice that because the ? is in place, validation can be run on favorite before it is blindly accepted by the query.

  • You never want to utilize formatted strings in queries as above or blindly trust the user’s input.
  • Utilizing the CS50 Library, the library will sanitize and remove any potentially malicious characters.

Summing Up

In this lesson, you learned more syntax related to Python. Further, you learned how to integrate this knowledge with data in the form of flat-file and relational databases. Finally, you learned about SQL. Specifically, we discussed…

  • Flat-file databases
  • Relational databases
  • SQL
  • Primary and foreign keys
  • JOINs
  • Indexes
  • Using SQL in Python
  • Race conditions
  • SQL injection attacks

See you next time!
